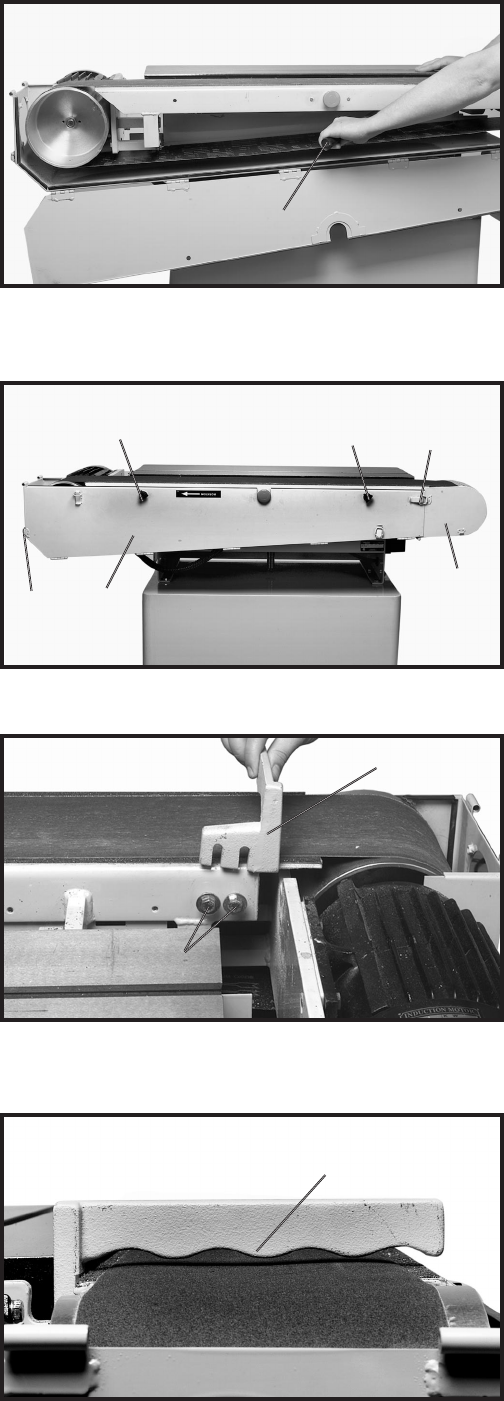

Fig. 10

Fig. 11

6. Slowly release the belt tension lever handle (G) Fig.

10, by grasping the lever handle (G) and pushing it in

until it stops.

7. Raise the belt guards (E) and (F) Fig. 11.

8. Latch levers (A) and (B) Fig. 11 to belt guards (E) and

(F).

9. Replace knobs (C) and (D) Fig. 11, that were

removed in STEP 1.

BACK STOP

Fig. 12

NOTE: THE BOTTOM OF THE BACK STOP (C) FIG. 13

SHOULD BE SET SLIGHTLY ABOVE THE BELT

SANDER TABLE.

1. Place a 5/16" flat washer on each 5/16-18 x 1" hex

head screw. Thread screws into table two complete

turns.

2. Place back stop (A) Fig. 12, on screws (B) between

table and washers and tighten securely.

Fig. 13
